Find all MANTION product lines and all the technical information on our products. If you need help, contact us.
Looking for our catalogs? Click here.
result(s)

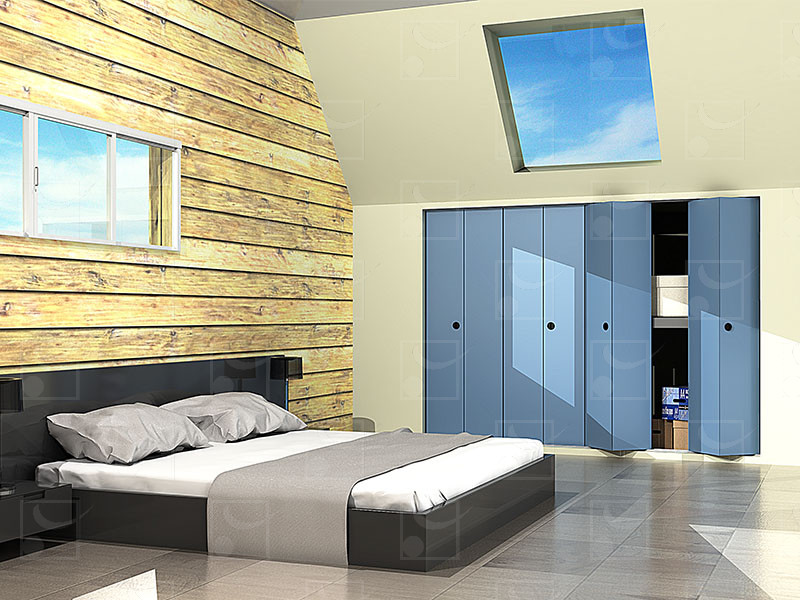

5300 – Sliding system for double folding doors
Specification guide
Other document Adjustable pivots to screw
Ref: PIVOTS-REGLABLES-VISSER
See the range
Adjustable pivots to weld
Ref: PIVOTS-REGLABLES-SOUDER
See the range
CADETTE – For straight door
Installation instructions
Technical drawing (PDF) Cantilever on an aluminium track
Ref: PAF-ALU
Capacity: maximum opening of up to 19' 8" (6 m)
Track: Aluminum
Movement: Straight
Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers.
See the rangeGates mounted on pivots – Adjustable hinge (180° opening)
Ref: GONDS-SOUDER-180
See the range
Gates mounted on pivots – Hinge on plate to screw
Ref: GONDS-PLATINE
See the range
Gates mounted on pivots – Hinge to screw with apron set to screw
Ref: GONDS-VISSER-CHAPE-VISSER
See the range
Gates mounted on pivots – Hinge to screw with apron set to weld
Ref: GONDS-VISSER-CHAPE-SOUDER
See the range
Gates mounted on pivots – Hinge to seal with apron set to screw
Ref: GONDS-SCELLER-CHAPE-VISSER
See the range
Gates mounted on pivots – Hinge to weld with apron set to screw
Ref: GONDS-SOUDER-CHAPE-VISSER
See the range
Gates mounted on pivots – Pivots with fastener for gates up to 180 lbs (80 kg)
Ref: PIVOTS-PATTES
See the range
Hercule 9600 serie – For exterior and garage doors
Ref: 9600
Capacity/Panel: 35 lbs (15 kg), 80 lbs (35 kg), 165 lbs (75 kg), 330 lbs (150 kg) and 550 lbs (250 kg)
Track: Galvanized Steel
Movement: Straight folding
Invisible door closer
Ref: FERME-PORTE-INVISIBLE
Capacity/Door: 185 lbs (85 kg), 440 lbs (200 kg)
Movement: Gates mounted on pivots
MAGLASS PINCE 80 – For glass door
Ref: MAGLASS-PINCE-80
Capacity/Door: 180 lbs (80 kg)
Glass thickness: 5/16" - 3/8" - 1/2" (8 - 10 - 12 mm)
Track: Aluminum
Movement: Straight
MINITUB – For cabinet doors
OPENTEC FMF100
Ref: OPENTEC-FMF100
See the range
OPENTEC FW75
PICO 13 – 25 – 26 – For closet doors
Ref: PICO-13-25-26
Capacity/Door: 30 lbs (13 kg) for PICO 13, 55 lbs (25 kg) for PICO 25-26
Track: PVC
Movement: Straight
PICO 60 – For closet doors
Ref: PICO-60
Capacity/Door: 130 lbs (60 kg)
Track: Aluminum and PVC
Movement: Straight
PICOSTAR 18 – For closet doors
Ref: PICOSTAR-18
Capacity/Door: 120 lbs (55 kg)
Door thickness: 3/4" (18 mm)
Track: Aluminum
Movement: Straight
PICOSTAR 19 – For closet doors
Ref: PICOSTAR-19
Capacity/Door: 120 lbs (55 kg)
Door thickness: 3/4" (19 mm)
Track: Aluminum
Movement: Straight
PICOSTAR 2 – For closet doors
Ref: PICOSTAR-2
Capacity/Door: 120 lbs (55 kg)
Door thickness: 1/2" to 3/4" (12 to 19 mm)
Track: Aluminum
Movement: Straight
ROC-DESIGN – For barn doors style
Ref: ROC-DESIGN
Capacity/Door:
- Type A - B - D - F: 260 lbs (120 kg)
- Type E: 220 lbs (100 kg)
- Type C: 180 lbs (80 kg)
Track: Flat track with "black" finish
Movement: Straight
SAF TWIN – For bi-pass doors
SAF-FOLD – For 1/3 – 2/3 folding doors
Ref: SAF-FOLD
Capacity of the 2 doors: 180 lbs (80 kg)
Track: Anodized aluminum
Movement: Folding/Sliding
Video SAF-SLIM – For straight door
Ref: SAF-SLIM
Capacity/Door: 180 lbs (80 kg)
Door thickness: 1-9/16" (40 mm) or 1-3/4" (45 mm)
Track: Anodized aluminum
Movement: Straight
Sliding gates – Cast iron wheels (round or square tracks)
Ref: RAIL-SOL-FONTE
See the range
Sliding gates – Inox wheels
Ref: RAIL-SOL-INOX
See the range
Sliding gates – Steel internal mounting bracket
Ref: RAIL-SOL-ACIER-SEXTA-SOUDER
See the range
Sliding gates – Steel wheels – Round groove wheels
Ref: RAIL-SOL-ACIER-GACIER-R
See the range
Sliding gates – Steel wheels – Steel external mounting brackets – Round groove wheels
Ref: RAIL-SOL-ACIER-SEXTA-R
See the range
Sliding gates – Steel wheels – Steel external mounting brackets – Triangular groove wheels
Ref: RAIL-SOL-ACIER-SEXTA-V
See the range
Sliding gates – Steel wheels – Steel internal mounting bracket – Round groove wheels
Ref: RAIL-SOL-ACIER-SINTA-R
See the range
Sliding gates – Steel wheels – Steel internal mounting bracket – Triangular groove wheels
Ref: RAIL-SOL-ACIER-SINTA-V
See the range
Sliding gates – Steel wheels – Triangular groove wheels
Ref: RAIL-SOL-ACIER-GACIER-V
See the range
SOFTCLOSE – For semi-automatic door
Ref: SOFTCLOSE
Capacity/Door: 180 lbs (80 kg)
Track: Anodized aluminum
Movement: Straight
SOFTCLOSE-GLASS – For semi-automatic glass door
Ref: SOFTCLOSE-GLASS
Capacity/Door: 180 lbs (80 kg)
Glass thickness: 5/16" - 3/8" (8 - 10 mm)
Track: Anodized aluminum
Movement: Straight
SPORT – For straight door on flat track
STARAL GLASS 150 – For glass doors
Ref: STARAL-GLASS-150
Capacity/Door: 330 lbs (150 kg)
Glass thickness: 1/2" (12 mm)
Track: Aluminum
Movement: Straight
Steel cantilever gate – PAF version
Ref: PAF-ACIER-PAF
Capacity: maximum opening of up to 34' 5" (10.5 m)
Track: Steel
Movement: Straight
Hangers recommended for motorized version
Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers. It offers a design that makes the structure lightweight and strong.
See the rangeSteel cantilever gate – S version
Ref: PAF-ACIER-S
Capacity: maximum opening of up to 34' 5" (10.5 m)
Track: Steel
Movement: Straight
Our SLIDSFOFT online configurator will guide you in sizing your gate and the concrete elements as well as in choosing the right track and hangers. It offers a design that makes the structure lightweight and strong.
See the rangeSUPERCADETTE – For straight doors
Ref: SUPERCADETTE
Capacity/Door: 130 lbs (60 kg)
Track: Galvanized Steel
Movement: Straight
System for sliding shutters WIN-2500
Ref: WIN-2500
Capacity/Panel: 65 lbs (30 kg)
Panel thickness: 5/8" to 1-1/4" (15 to 32 mm)
Panel types: Wood, Aluminum, PVC...
Track: Steel
Movement: Straight
System for sliding shutters WIN-SLIDE: simple track
Ref: WIN-SLIDE
Capacity/Panel: 180 lbs (80 kg)
Panel thickness: 3/4" to 1-5/8" (20 à 40 mm)
Panel types: Wood, Aluminum, PVC...
Track: Aluminum
Movement: Straight
TANGO – For folding doors
TUBEL – For closet doors
Ref: TUBEL
Capacity/Door: 65 lbs (30 kg) for edge-mounted, 90 lbs (40 kg) for face-mounted
Door thickness: 5/8" to 1-5/8" (16 to 40 mm)
Track: Aluminum
Movement: Straight
SAF POCKET – For pocket door
STARAL – For heavy door
Ref: STARAL
Capacity/Door: 880 lbs or 1320 lbs (400 kg or 600 kg)
Track: Aluminum
Movement: Straight
STARAL PLUS – For straight heavy doors
Ref: STARAL-PLUS
Capacity/Door: 330 lbs, 440 lbs or 880 lbs (150 kg, 200 kg or 400 kg)
Track: Aluminum
Movement: Straight
600 serie – For concertina folding doors
Ref: 600
Capacity/Panel: 25 lbs (12 kg), 45 lbs (20 kg), 80 lbs (35 kg), 165 lbs (75 kg) and 285 lbs (130 kg)
Track: Galvanized Steel
Movement: Folding
System for sliding shutters – WIN-STH
Ref: WIN-STH
Capacity/Panel: 180 lbs (80 kg) and 260 lbs (120 kg)
Panel thickness: 1" to 1-5/8" (27 to 40 mm), 1-5/8" à 3-1/8" (40 à 80 mm)
Panel types: Wood, Aluminum, PVC...
Track: Steel and Inox
Movement: Straight
System for sliding shutters WIN-STS – Steel track
Ref: WIN-STS
Capacity/Panel: 180 lbs (80 kg) and 330 lbs (150 kg)
Track: Steel
Movement: Straight
Panel thickness: 3/4" to 3-1/8" (20 to 80 mm)
Panel types: Wood, Aluminum, PVC...
System for folding sliding shutters WIN-FOLD 2
Ref: WIN-FOLD
Capacity/Panel: 45 lbs (20 kg)
Panel thickness: 1-1/8" to 1-3/8" (30 to 34 mm)
Panel width: 23-5/8" (600 mm) max
Track: Aluminum
Movement: Straight folding
System for sliding shutters WIN-SLIDE-R: simple track or double track
Ref: WIN-SLIDE-R
Capacity/Panel: 180 lbs (80 kg), 260 lbs (120 kg)
Panel thickness: 3/4" to 1-5/8" (20 à 40 mm), 1-5/8" to 3-1/8" (40 à 80 mm)
Panel types: Wood, Aluminum, PVC...
Track: Aluminum
Movement: Straight
